DORAL, FL — Sazon, Inc., a manufacturing division of GOYA Foods, the largest Hispanic-owned food company in the US, produces bouillon powders and numerous varieties of Sazón GOYA^® powdered seasoning blends. The original product line was launched in Puerto Rico in 1973 and moved to GOYA's Miami-area facility in 1983.

Workers previously loaded herbs, spices, salt and seasonings manually into three ribbon blenders, each with a working capacity of nearly 3,000 lb (1,360 kg). The job required lifting, cutting, and dumping several dozen bags per batch, for 21 batches over an eight-hour shift. "Dumping 50 lb (22.5 kg) bags... for every batch is not easy work," says Hiram Carlo, plant manager.

Automated weigh batch discharging from bulk bags ends fatigue

Due to robust sales growth, Sazon, Inc. added two packaging lines and two blenders to the operation in 2019. It also installed five identical bulk weighing and batching systems, one for each blender, to add a large-volume ingredient in many of the 19 seasoning and bouillon recipes.

Engineered and supplied by Flexicon Corp., each of the batching systems combines a BULK-OUT^® bulk bag discharger and a flexible screw conveyor that feeds seasoning into a PNEUMATI-CON^® pneumatic conveying line 55 ft (17 m) long.

In operation, one-ton (0.9-tonne) bulk bags of seasoning are delivered by forklift to the bulk bag discharger, which is mounted on load cells. The operator connects the bag loops to a lifting frame at floor level and, using a pendant controller, loads the bag into the discharger frame by means of a hoist and trolley travelling on a cantilevered I-beam.

The operator then makes a dust-tight connection to a SPOUT-LOCK^® clamp ring atop a TELE-TUBE^® telescoping tube, and unties the spout drawstring. The telescoping tube applies continuous downward tension on the bag as it empties and elongates, promoting flow and evacuation.

The seasoning powder, comprised of fine white crystals, flows into a 5 cu ft (142 L) floor hopper with an integral 5 ft (1.5 m) long, 3.5 in. (90 mm) diameter flexible screw conveyor. The conveyor propels the product at an incline, discharging through flexible downspouting into a pickup adapter feeding a 2.5 in. (64 mm) diameter pneumatic conveying line.

Load cells supporting the bulk bag discharger transmit loss-of-weight signals to a PLC that controls the batch weight of seasoning. "We just input the information into the panel, say 2,000 pounds, and that's it," Carlo says.

Upon receiving the signal, the inclined flexible screw conveyor feeds the seasoning into the pickup adapter. From there, the material travels 55 ft (17 m) horizontally and 15 ft (4.6 m) vertically to a 24 in. (60 cm) diameter filter-receiver that discharges into a 2.5 cu ft (71 L) hopper.

Delivery of the seasoning slows and stops automatically when the weight lost from the bulk bag reaches the target batch weight. A rotary airlock valve simultaneously discharges the batch into the blender through flexible down-spouting, as minor ingredients are added manually.

After 30 minute blending cycles, the batch gravity discharges through a slide gate, and passes through a check-sifter before flowing into a hopper from which a flexible screw conveyor feeds a packaging line. Foil-lined packets are formed and filled with 5 to 10 g (0.18 to 0.35 oz) of material, and heat-sealed at rates of 1,000 to 1,500 per minute.

The packets are inserted into a carton that passes through a check-weigher, gets coded, and moves to an accumulator for placement into a "master case." In the final step, two palletizers consolidate the master cases for shipment.

Higher output with fewer personnel

The plant operates two shifts and can process 35 batches per shift, versus 21 batches previously, with just five operators responsible for batching, blending, packaging and shipping.

"We package more than a billion packets a year now, and we're much more comfortable," Carlo says. "No worker fatigue, and far less time dumping bags manually. It's a more efficient way to make our products and it's making our lives easier."

GOYA Foods of Florida
305-592-3150
www.GOYA.com

HAVE A FLEXICON ENGINEER CALL ABOUT YOUR APPLICATION > >

Automated Weigh Batching Increases Output, Ends Fatigue at Goya Florida

Click to enlarge

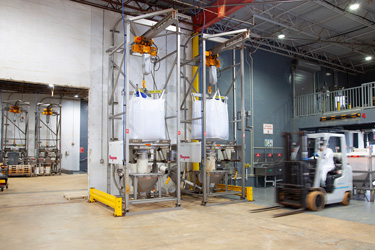

Five identical bulk weighing and batching systems, each comprised of a bulk bag discharger on load cells, move ingredients from bulk bags through a pneumatic conveying line to five blenders.
